Our Product Lines

Comprehensive spray solutions engineered for performance

A complete portfolio across nozzles, atomizers, tank cleaning, pharmaceutical equipment, and engineered systems — for every application.

Hollow Cone Nozzles (BA / BB / BG / BH)
Product Photo
BA / BB / BG / BH

Hollow Cone Nozzles

Ring-pattern spray for gas cooling, scrubbing, and dust control · 0.5–80 LPM

View details
Hollow Cone Nozzles (BA / BB / BG / BH)
BA / BB / BG / BH

Tangential-design hollow cone nozzles producing a ring-shaped spray of fine droplets. Standard, wide-angle, and small-orifice variants cover general gas cooling, scrubbing, and dust-control duties.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
BA 0.5–80 LPM60°, 90°, 120°SS304, SS3161/8"–3/4" PDF
BB 0.5–80 LPM60°, 90°, 120°SS304, SS3161/8"–3/4" PDF
BG 0.5–80 LPM60°, 90°, 120°SS304, SS3161/4"–1-1/2" PDF
BH 0.5–16 LPM60°, 75°, 90°SS304, SS3161/8"–1/2" PDF

Applications: Gas cooling, dust control, chemical scrubbing, evaporative cooling, fire-suppression pre-wetting.

Request a Quote
Product family Large-Bore Hollow Cone (BC / BD / BE / BI)
Product Photo
BC / BD / BE / BI

Large-Bore Hollow Cone

High-volume cooling and scrubbing up to 3181 LPM

View details
Large-Bore Hollow Cone (BC / BD / BE / BI)
BC / BD / BE / BI

Large free-passage hollow cone nozzles for high-flow industrial cooling and scrubbing — flow ranges and bore sizes that exceed typical competitor offerings.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
BC 50–540 LPM75°, 90°SS304, SS3161"–2-1/2" PDF
BD 50–540 LPM130°SS304, SS3161"–2-1/2" PDF
BE 510–3181 LPM130°SS304, SS3163", 4" PDF
BI 6.5–337 LPM60°, 90°, 120°, 180°SS304, SS3161/4"–1" PDF

Applications: Heavy industrial gas cooling, large-scale scrubbing, quench towers.

Request a Quote
Full Cone Nozzles (DA / DB / DE)
Product Photo
DA / DB / DE

Full Cone Nozzles

Even circular coverage for cooling and washing · 1–337 LPM, SS304/316

View details
Full Cone Nozzles (DA / DB / DE)
DA / DB / DE

Vaned full cone nozzles delivering uniform droplet distribution over a circular area. The workhorse range for cooling, washing, and dust suppression.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
DA 1–337 LPM15°–120°SS304, SS3161/8"–1" PDF
DB 1–72 LPM45°–120°SS304, SS3161/8"–1" PDF
DE 1–337 LPM90°, 120°SS304, SS3161-1/4"–2" PDF

Applications: Cooling towers, product rinsing, fire protection, dust suppression, CIP cleaning.

Request a Quote
Max-Flow Full Cone (DC)
Product Photo
DC

Max-Flow Full Cone

Clog-resistant large bore for high-particulate fluids · up to 10,000 LPM

View details
Max-Flow Full Cone (DC)
DC

Maximum free-passage full cone nozzles with flange-end connections for very high flow and particulate-laden fluids.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
DC 800–10,000 LPM60°, 90°, 120°SS304, SS3163"–10" flange PDF

Applications: Quench systems, scrubbers, large-volume cooling, recycled/dirty water.

Request a Quote

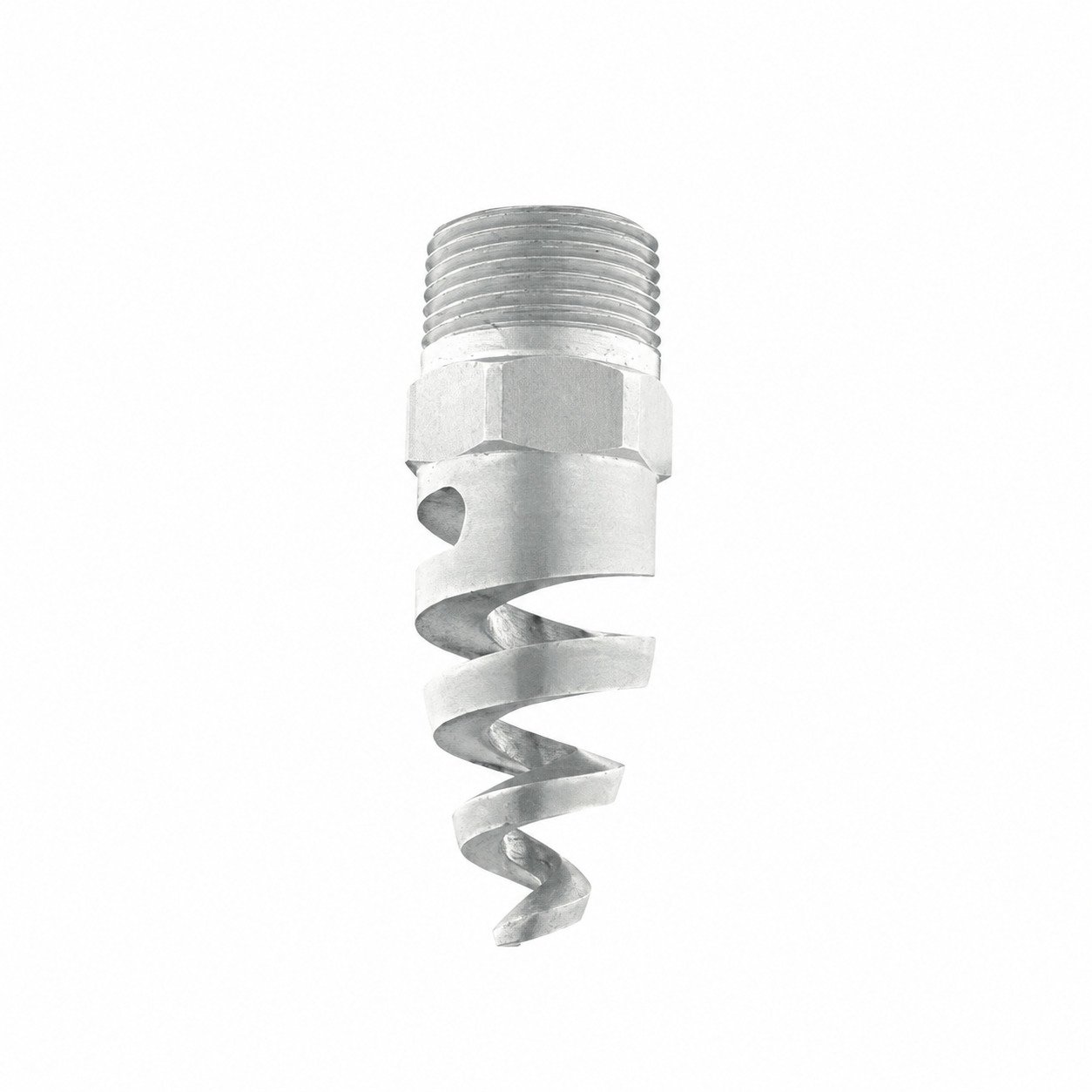

Spiral Full Cone (DF)
Product Photo
DF

Spiral Full Cone

Clog-resistant spiral pattern for dirty/recycled fluids · up to 3125 LPM

View details
Spiral Full Cone (DF)
DF

Open spiral design with no internal vanes — the largest free passage for clog-resistant spraying of dirty or recycled fluids.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
DF 4.75–3125 LPM60°–180°SS304, SS3161/4"–4" PDF

Applications: Gas scrubbing, dust suppression, fire protection, recycled-water cooling.

Request a Quote
Flat Spray Nozzles (CA / CB)
Product Photo
CA / CB

Flat Spray Nozzles

Uniform flat fan for cleaning, rinsing, and coating · up to 430 LPM

View details
Flat Spray Nozzles (CA / CB)
CA / CB

Tapered-edge flat fan nozzles giving an even, straight-line spray distribution for cleaning, rinsing, and coating across conveyors and lines.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
CA 0.5–80 LPM15°–120°SS304, SS3161/8"–1/2" PDF
CB 0.5–430 LPM15°–120°SS304, SS316, Brass1/4"–2" PDF

Applications: Metal pre-treatment, phosphating, parts washing, conveyor cleaning, coating.

Request a Quote

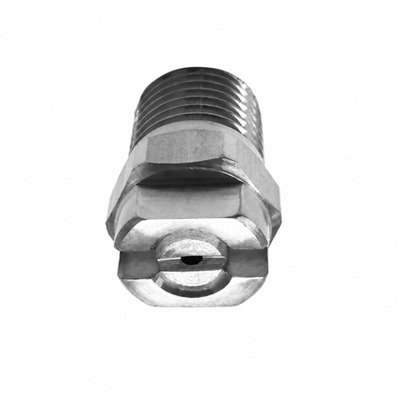

High-Impact Flat (CN)
Product Photo
CN

High-Impact Flat

Aggressive descaling and cleaning with SS420 hardened insert

View details
High-Impact Flat (CN)
CN

High-impact flat nozzles with a hardened SS420 insert for aggressive descaling and surface preparation where impact and wear life matter.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
CN 2–80 LPM30°–90°SS304/SS316 + SS420 insert1/8"–1/2" PDF

Applications: Hot-strip descaling, surface prep, heavy cleaning.

Request a Quote
Flooding Nozzles (CH)
Product Photo
CH

Flooding Nozzles

Wide 90°/140° coverage for low-pressure flooding

View details
Flooding Nozzles (CH)
CH

Wide-angle flat flooding nozzles for high-volume, low-pressure coverage over a broad area.

SeriesFlow RangeSpray AngleMaterialEnd ConnectionDatasheet
CH 1–250 LPM90°, 140°SS304, SS316, Brass1/8"–1" PDF

Applications: Low-pressure flooding, cooling, wash-down, conveyor coverage.

Request a Quote

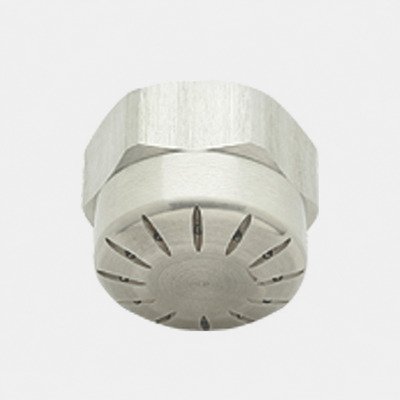

Fog & Mist Nozzles (Fog)
Product Photo
Fog

Fog & Mist Nozzles

Ultra-fine mist (~10 microns) for humidification and evaporative cooling

View details
Fog & Mist Nozzles (Fog)
Fog

Fine-atomization fog nozzles producing micron-scale droplets for humidification, evaporative cooling, and dust suppression. Available in brass, stainless steel, and plastic.

Applications: Warehouse/process humidification, evaporative cooling, outdoor cooling, dust control.

Request a Quote

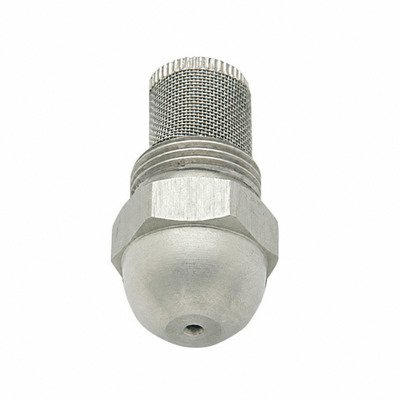

Oil Burner Nozzles (BK / BKB)
Product Photo
BK / BKB

Oil Burner Nozzles

Precision fuel atomization for furnaces and boilers · 0.75–100 GPH

View details
Oil Burner Nozzles (BK / BKB)
BK / BKB

Semi-hollow-cone fuel-atomizing nozzles. Micro-finished tip and disc seats with close tolerances ensure accurate, repeatable capacity control.

SeriesCapacitySpray AnglePatternMaterialDatasheet
BK 0.75–100 GPH45°–90°Semi hollow coneSS303, SS316, Brass
BKB 0.030–0.390 LPM60°, 90°Semi hollow coneSS303, SS316L PDF

Applications: LDO firing in kilns of cement, sponge-iron plants; furnaces, boilers, dust suppression.

Request a Quote
Product family Fire Fighting Nozzles (HV / MV / QBD / Foam)
Product Photo
HV / MV / QBD / Foam

Fire Fighting Nozzles

Deluge, sprinkler, foam, and curtain fire suppression

View details
Fire Fighting Nozzles (HV / MV / QBD / Foam)
HV / MV / QBD / Foam

A full fire-protection nozzle range that goes beyond a typical spray catalog — high/medium-volume deluge nozzles, curtain nozzles, QBD sprinklers, and foam sprinklers.

  • HV Nozzle — high-volume open deluge
  • MV Nozzle — medium-volume open deluge
  • Curtain Nozzle — water-curtain separation
  • QBD Sprinkler — dedicated fire sprinkler
  • Foam Sprinkler — foam injection for flammable liquids
  • Spiral Spray Nozzle — high free-passage fire spray

Applications: Deluge systems, tank-farm protection, warehouse suppression, process-area fire protection.

Request a Quote

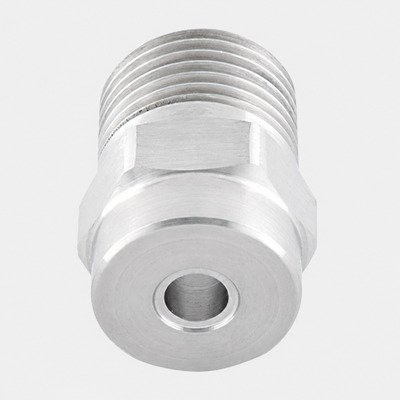

Straight Jet Nozzles (Straight Jet)
Product Photo
Straight Jet

Straight Jet Nozzles

Concentrated solid stream for cutting and high-impact rinsing

View details
Straight Jet Nozzles (Straight Jet)
Straight Jet

Solid-stream nozzles delivering a concentrated, high-impact jet with long throw. Available across orifice sizes and thread connections.

Applications: Cutting, scale removal, high-impact cleaning, long-throw rinsing, tank cleaning.

Request a Quote
Sand Filter Nozzles (Sand Filter)
Product Photo
Sand Filter

Sand Filter Nozzles

9 retention types for water treatment and filtration vessels

View details
Sand Filter Nozzles (Sand Filter)
Sand Filter

Media-retention nozzles and strainers in virgin polypropylene and stainless steel for water-treatment and filtration vessels — slots sized to retain media while passing water.

  • Sand Filter Nozzle (PP)
  • Filter Nozzle (filter + stem)
  • Hub & Lateral underdrain
  • Soft-Type Strainers
  • PP Strainers
  • Gravity Sand Filter Nozzle
  • Disk-Type Strainer
  • PP Disk-Type Strainers
  • Double-Decker Strainers

Applications: Water treatment plants, ion-exchange vessels, sand/multimedia filters, underdrains.

Request a Quote

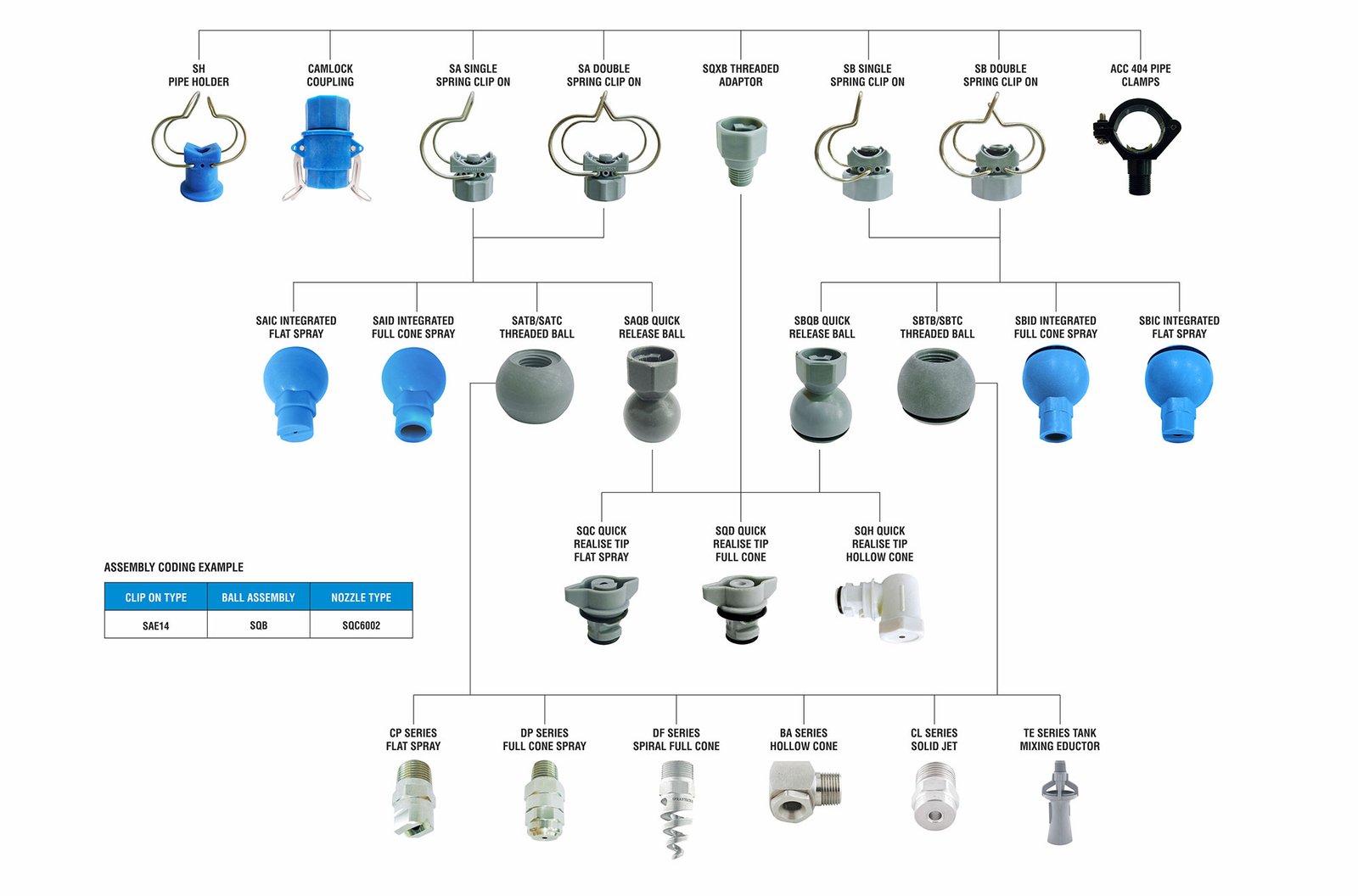

Product range Clip-On Nozzles (29+ Series)
Product Photo
29+ Series

Clip-On Nozzles

Snap-on, no-thread nozzles for headers and pre-treatment lines

View details
Clip-On Nozzles (29+ Series)
29+ Series

A 29+ series snap-on range that clips to a standard 9/16" dia header hole — no threading or drilling — in flat, full cone, and hollow cone patterns. The deepest clip-on line on the market.

Applications: Conveyor lubrication, wash-down headers, cooling lines, pre-treatment & phosphating lines.

Request a Quote

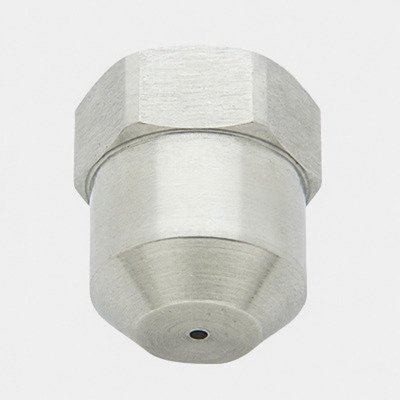

Steel Mill Nozzles (Steel Mill)
Product Photo
Steel Mill

Steel Mill Nozzles

Heavy-duty nozzles for casting cooling, descaling, and metal cooling

View details
Steel Mill Nozzles (Steel Mill)
Steel Mill

Engineered nozzles and headers for the extreme temperature and pressure of metal production — continuous casting cooling, descaling, and rolling-mill cooling.

Applications: Continuous casting cooling, hot-strip descaling, rolling-mill cooling, quench systems.

Request a Quote
Compact Auto Air Atomizers (CAIA / CAEA)
Product Photo
CAIA / CAEA

Compact Auto Air Atomizers

Automatic fine atomization for automated production lines

View details
Compact Auto Air Atomizers (CAIA / CAEA)
CAIA / CAEA

Compact internally-/externally-mixing automatic air-atomizing nozzles for fine, controllable atomization on automated production lines.

Applications: Fine coating, cooling, gas conditioning, humidification, surface treatment.

Request a Quote
Standard Air Atomizer (DAIA)
Product Photo
DAIA

Standard Air Atomizer

Fine-spray atomization for general coating and cooling

View details
Standard Air Atomizer (DAIA)
DAIA

Standard air-atomizing nozzle for general-purpose fine spraying where compressed air is available.

Applications: Coating, cooling, humidification, dust suppression.

Request a Quote
Adjustable Air Atomizer (DASA)
Product Photo
DASA

Adjustable Air Atomizer

Variable spray control for tuned output

View details
Adjustable Air Atomizer (DASA)
DASA

Adjustable air-atomizing nozzle allowing the spray rate and pattern to be tuned to the application.

Applications: Variable-rate coating, controlled humidification, precision cooling.

Request a Quote
Rotating Tank Washers (EA / EB / EC)
Product Photo
EA / EB / EC

Rotating Tank Washers

Rotating-head cleaning for small-to-medium vessels

View details
Rotating Tank Washers (EA / EB / EC)
EA / EB / EC

Self-rotating tank washers driven by the cleaning fluid — compact and jet-type heads for small-to-medium vessels.

SeriesPattern / AngleCleaning ØMaterialTypeDatasheet
EA Compact · 180°/270°/360°up to 1.5 mSS304, SS316, PTFESelf-rotating PDF
EB Compact · 180°/270°up to 1.5 mSS304, SS316Self-rotating PDF
EC Jet type · 270°/360°up to 2.5 mSS304, SS316, PTFESelf-rotating PDF

Applications: Process tanks, reactors, totes, food & beverage vessels.

Request a Quote

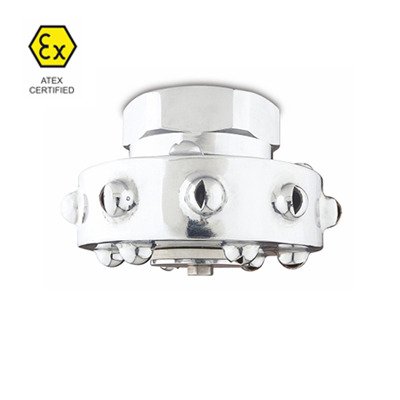

High-Impact Rotating Washers (EE / EDB)
Product Photo
EE / EDB

High-Impact Rotating Washers

High-impact cleaning for vessels up to 4 m

View details
High-Impact Rotating Washers (EE / EDB)
EE / EDB

High-impact self-rotating washers for stubborn residue and larger vessels.

SeriesPattern / AngleCleaning ØMaterialTypeDatasheet
EE High impact · 180°/270°/360°up to 4 mSS304, SS316Self-rotating PDF
EDB Flat-spray tips · 270°/360°up to 2.5 mSS304, SS316Self-rotating

Applications: Heavy-residue tanks, reactors, large process vessels.

Request a Quote

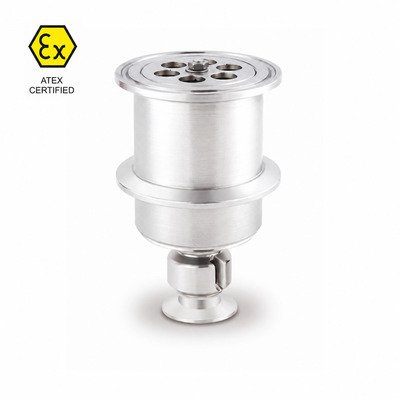

Product family Retractable Pop-Up Washer (EK)
Product Photo
EK

Retractable Pop-Up Washer

Retractable cleaning head for pharmaceutical isolators

View details
Retractable Pop-Up Washer (EK)
EK

Retractable pop-up washer that withdraws flush when not in use — purpose-built for pharmaceutical isolators and confined sterile spaces.

SeriesPattern / AngleCleaning ØMaterialTypeDatasheet
EK Pop-up · 270°up to 1 mSS304, SS316Self-rotating PDF

Applications: Pharma isolators, sterile vessels, confined enclosures.

Request a Quote
Product family Gear-Driven Washers (EL / EM / EQA / EQB)
Product Photo
EL / EM / EQA / EQB

Gear-Driven Washers

Controlled-rotation cleaning for tanks up to 20 m diameter

View details
Gear-Driven Washers (EL / EM / EQA / EQB)
EL / EM / EQA / EQB

Gear-driven, controlled-rotation tank washers delivering a high-impact indexed pattern for the largest tanks — up to 20 m diameter.

SeriesPattern / AngleCleaning ØMaterialType
EL Double jet · 360°up to 20 mSS316Gear-driven
EM Four jet · 360°up to 16 mSS316Gear-driven
EQA Double jet · 360°up to 5 mSS316Gear-driven
EQB Four jet · 360°up to 7 mSS316Gear-driven

Applications: Large chemical/petroleum storage tanks, rail/road tankers, brewery & distillery vessels.

Request a Quote

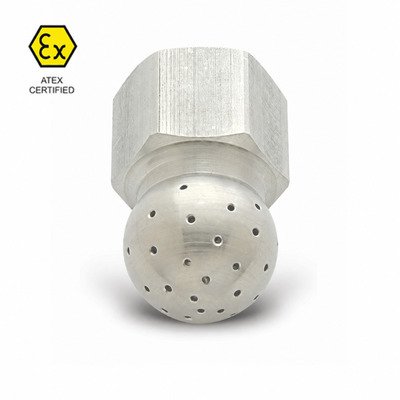

Fixed Tank Washers (EH / EI)
Product Photo
EH / EI

Fixed Tank Washers

Stationary multi-jet 360° washers for CIP and sanitary use

View details
Fixed Tank Washers (EH / EI)
EH / EI

Stationary spray heads with multiple orifices/jets for continuous-rinse CIP and sanitary cleaning.

SeriesPattern / AngleCleaning ØMaterialTypeDatasheet
EH Multiple orifice · 180°/270°up to 1.5 mSS304, SS316, PTFEStationary PDF
EI Multiple jet · 180°/270°/360°up to 2.5 mSS304, SS316Stationary PDF

Applications: CIP circuits, sanitary tanks, continuous rinse.

Request a Quote
CIP Spray Balls (EG / EP)
Product Photo
EG / EP

CIP Spray Balls

Sanitary 316L spray balls with tri-clamp connections

View details
CIP Spray Balls (EG / EP)
EG / EP

Sanitary spray balls giving 360° coverage for Clean-in-Place. 316L stainless with tri-clamp connections for food, dairy, beverage, and pharma vessels.

SeriesPattern / AngleCleaning ØMaterialTypeDatasheet
EG Double bearing · 270°/360°up to 2.5 mSS304, SS316Self-rotating PDF
EP Flat slit · 360°up to 1.5 mSS316Self-rotating

Applications: Pharma vessels, dairy, brewery, beverage, cosmetics CIP.

Request a Quote

Pharmaceutical spray equipment categories — confirm wetted materials, seals, cleaning, and documentation for the selected model.

Tablet Coating Spray Guns (RC / RCS / RB)
Product Photo
RC / RCS / RB

Tablet Coating Spray Guns

Uniform film, sugar, and enteric coating of tablets

View details
Tablet Coating Spray Guns (RC / RCS / RB)
RC / RCS / RB

Air-atomizing spray-gun categories for pharmaceutical tablet-coating applications. Confirm model-specific materials, seals, cleaning, documentation, equipment interface, and process requirements.

Applications: Tablet film/sugar/enteric coating, pellet coating, taste-masking.

Request a Quote
Product family RDS Coating Series (RDS)
Product Photo
RDS

RDS Coating Series

Additional coating series for high-throughput operations

View details
RDS Coating Series (RDS)
RDS

An additional tablet-coating series for high-throughput coating lines — not carried by typical competitors.

Applications: High-throughput tablet coating, sustained-release coating.

Request a Quote

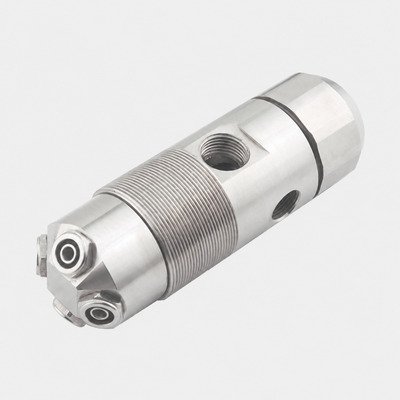

Granulator Spray Lances (RMG / HSG)
Product Photo
RMG / HSG

Granulator Spray Lances

Binder spray for rapid mixer & high-shear granulators (1/3/4 head)

View details
Granulator Spray Lances (RMG / HSG)
RMG / HSG

Binder-spray nozzles and lance assemblies for Rapid Mixer Granulators and High-Shear Granulators, available with 1, 3, or 4 spray heads.

Applications: Wet granulation, binder addition in RMG/HSG.

Request a Quote

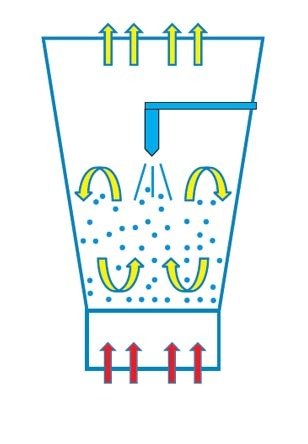

Fluid-Bed Top Spray Lances (FBP Top Spray)
Product Photo
FBP Top Spray

Fluid-Bed Top Spray Lances

Top-spray nozzles & lances for fluid bed processors/dryers

View details
Fluid-Bed Top Spray Lances (FBP Top Spray)
FBP Top Spray

Top-spray nozzles and complete lance assemblies for Fluid Bed Processors and Dryers (FBP/FBD).

Applications: Fluid-bed granulation, drying, top-spray coating.

Request a Quote

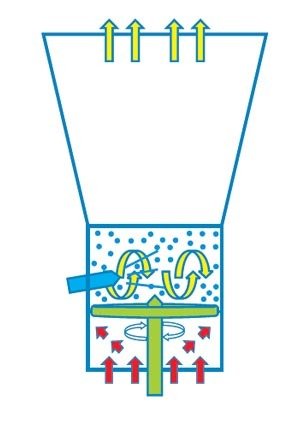

Wurster Bottom Spray Lances (FBP Bottom Spray)
Product Photo
FBP Bottom Spray

Wurster Bottom Spray Lances

Bottom-spray lance assemblies for Wurster coating

View details
Wurster Bottom Spray Lances (FBP Bottom Spray)
FBP Bottom Spray

Bottom-spray (Wurster) lance assemblies for uniform pellet and particle coating in fluid-bed systems.

Applications: Wurster pellet coating, sustained-release coating.

Request a Quote
Strainers & Filter Elements
Product Photo

Strainers & Filter Elements

Y-type, basket, disk-type, and PP strainer elements for process filtration

View details
Strainers & Filter Elements

Strainer and filter elements for process and water-treatment lines — Y-type, basket, disk-type, and polypropylene constructions, including self-cleaning options.

Applications: Nozzle-line protection, water purification, process filtration.

Request a Quote

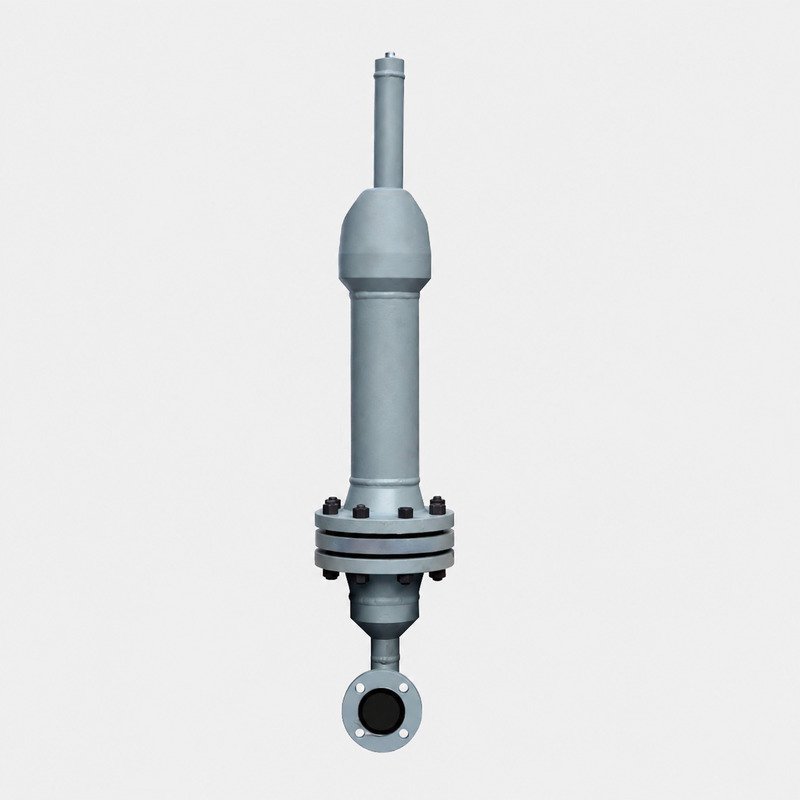

Injection Quills
Product Photo

Injection Quills

8 quill types, 6 material grades, 1/4"–24" — retractable, retrievable, double block & bleed

View details
Injection Quills

Chemical injection quills for precise dosing into pipelines and vessels — male, female, online-retrievable, retractable (clamp/chain), non-retractable, double block & bleed, and fixed types. Sizes 1/4"–24".

  • Material grades: A106 Gr B · A105 · B423 (UNS 8825) · A312 TP321 · A333 Gr6 · A312 TP316L
  • Integrated quill nozzles: BK, DA (full cone), BA (hollow cone)

Applications: Water treatment, oil & gas, chemical processing, power generation, pulp & paper.

Request a Quote

Valves & Flow Control

Control, solenoid, check, gate, and butterfly valves + orifice plates and flow indicators

View details

A complete valve and flow-control range for spray systems — control, solenoid, check, gate, and butterfly valves, plus orifice plates, flow indicators, and sight glasses. Supplied via Spraytech’s dedicated valve and flow-element lines.

Applications: Spray-system regulation, automated on/off control, backflow prevention, flow measurement.

Request a Quote

Forge Fittings

High-pressure forged elbows, tees, couplings, unions — Class 2000–9000

View details

High-pressure forged fittings for industrial piping — elbows, tees, couplings, unions, bushings, caps, and plugs in carbon, stainless (304/316), and alloy steel. Pressure classes 2000–9000.

Applications: High-pressure process piping, steam and hydraulic systems, petrochemical plants.

Request a Quote
Fine Mist (Water)
Product Photo

Fine Mist (Water)

Water-only fine mist suppression for material handling and transfer points

View details
Fine Mist (Water)

Water-only fine-mist suppression systems that knock down airborne dust at the source using fine droplets sized to agglomerate with dust particles.

Applications: Material handling, transfer points, crushers, stockpiles.

Request a Quote
Fine Mist (Chemical-Aided)
Product Photo

Fine Mist (Chemical-Aided)

Surfactant-aided mist for stubborn or fine particulate

View details
Fine Mist (Chemical-Aided)

Surfactant/chemical-aided fine-mist systems for stubborn or very fine particulate where plain water is insufficient.

Applications: Fine-dust suppression, coal handling, mineral processing.

Request a Quote
Dry Fog (Air + Water)
Product Photo

Dry Fog (Air + Water)

Dry fog system for PM2.5/PM10 control without wetting the material

View details
Dry Fog (Air + Water)

Air-plus-water dry-fog systems generating ultra-fine fog that controls PM2.5/PM10 without appreciably wetting the material being handled.

Applications: Conveyor transfer points, crushers, cement and coal plants, indoor dust control.

Request a Quote
Why Ventura

Application Information That Starts with the Process

Use the existing product range, technical files, industry guidance, and structured enquiry forms to define a responsible starting point.

Broad Product Categories

Compare cone, flat, jet, atomizing, tank-washing, dust-control, pharmaceutical, and related spray categories.

Process Inputs First

Selection guidance emphasizes the actual fluid, flow, pressure, coverage, temperature, material, and installation conditions.

Replacement Matching

Document an installed nozzle using markings, dimensions, fit, operating point, and required spray duty.

Industry Guidance

Review application-specific considerations for food, water, mining, chemical, and steel operations.

Documentation Requests

Identify certificates, drawings, declarations, traceability, or other records before ordering so availability can be confirmed.

Clear Next Steps

Submit known conditions and unknowns through one specification form, with a typical initial response within one business day.

Quotation and specification request

Tell Us About Your Spray Application

Use measured operating information where available. We can still start with partial details and identify what needs confirmation.

  • Typical initial response: within one business day.
  • Need to share a photo, drawing, specification sheet, or current datasheet? Submit this form first and we will reply with sending instructions.
  • For time-sensitive requests, call 416-206-9308.

Review certifications, compliance, and documentation guidance

Contact details
Application details

Your information is used to assess and respond to this enquiry. Review the Privacy Policy.

We typically respond within one business day.
